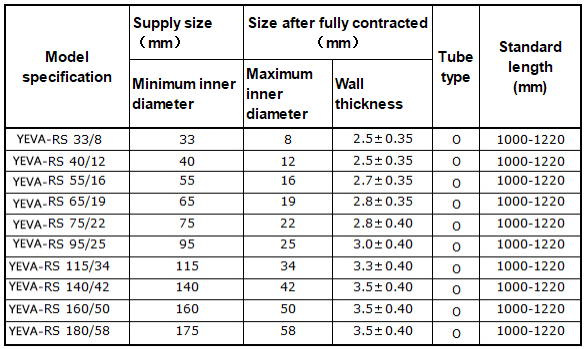

Product Model Comparison Table
Shrinkage ratio: 3:1
Working temperature: ﹣45℃~110℃;
Shrinking temperature: 70℃~120℃;
The inner layer of black anti-corrosion glue, excellent waterproof and moisture-proof, sealing performance
Standard color: black
product description:
The outer layer of the anticorrosive mid-wall heat shrinkable tube product is made of radiation cross-linked polyolefin, which can provide effective mechanical protection, impact resistance and abrasion resistance. The inner layer is coated with black anticorrosive sealant, which has excellent sealing, waterproof and moisture-proof performance. Mainly used in metal pipelines and other working environments that require anti-corrosion, sealing, and mechanical protection.
Features
Shrinkage ratio: 3:1
Working temperature: ﹣45℃~110℃;
Shrinking temperature: 70℃~120℃;
The inner layer of black anti-corrosion glue, excellent waterproof and moisture-proof, sealing performance
Standard color: black
project | Test Methods | Typical data |
Outer technical indicators | ||
Tensile Strength | ASTM D 2671 | ≥13.5MPa |
Elongation at break | ASTM D 2671 | ≥350% |
Tensile strength after aging | ASTM D 2671(150℃/168hrs.) | ≥11MPa |
Elongation at break after aging | ≥200% | |
Longitudinal shrinkage | UL 224 | 0~-10% |
Breakdown strength | IEC 243 | ≥20KV/mm |
Volume resistivity | IEC 93 | ≥10^14Ω.cm |
Copper stability | ASTM D 2671 | pass through |
Hot melt adhesive performance | ||
Softening Point | ASTM D E28 | 85±5℃ |
Water absorption | ISO 62 | ≤0.2% |
